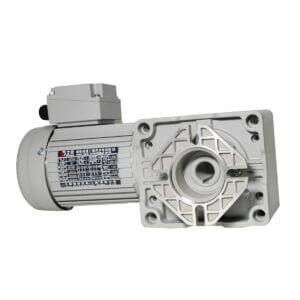

Right Angle AC Gear Motor

wdh-site

Right Angle AC Gear Motor

Available Power Range: 25W-1500W

Suitable Voltage:1-ph 110/220/230VAC,50/60HZ,MAX250W; 3-ph 220/380/415/440VAC, 50/60HZ; MAX1500W





PRODUCT DETAIL

Available Power Range: 25W-1500W

Suitable Voltage: 1-ph 110/220/230VAC,50/60HZ,MAX250W;3-ph 220/380/415/440VAC, 50/60HZ; MAX1500W

Output torque range with gearbox 0.1N.m-250N.m

Motor Speed 1350rpm under 50hz, 4p; 1650rpm under 60hz, 4p;

Gear ratio range 1:3-1:600

Insulation class B(130°C), EN standards



Product Features:

1. Compct size, 4 screwed holes on gearhead, also can be foostand mounted by L type bracket.

2. Gear material is 40Cr., all output shaft is integrated by hot extrusion processing, which can afford stronger impact resistance and strength than spline connection

3. All motors be power up to test withstanding voltage, insulation, noise, temperature rising and appearance.

4. 100% copper wire, cotinuously running is no problem.

5. Special grease be poured into gearhead before delivery, free maintenance.

6. Spiral bevel gear with high transmission efficiency to 95% and low temperature rising



Product Application:

1. Converyor system

2. Pharmaceutical machine

3. Automatic Control, Textile Equipment, Converyor System, Packing Machine

4. Motor, Textile, Printing, Food, Metallurgical,

5. Environmental Protection Engineering, Warehouse Logistics Industry.



Application

wdh-site
wdh-site
wdh-site
wdh-site
wdh-site
wdh-site
