Description
Parameter details
| Available Power Range: | 15W-250W | |
| Suitable Voltage: | 1-ph 110/220/230VAC,50/60HZ; 3-ph 220/380/415/440VAC, 50/60HZ; | |
| Output torque range with gearbox | 0.1N.m-40N.m | |
| Motor Speed | 1350rpm under 50hz, 4p; 1650rpm under 60hz, 4p; | |
| Gear ratio range | 1:3-1:750 | |
| Brake response time | millisecond level | |
Product Features

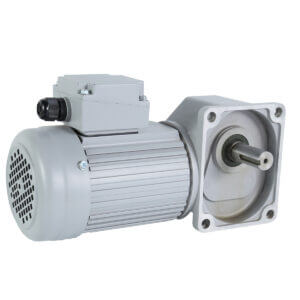

- 1. Motor equiped with power-off brake, when power supply of the brake is stop, the brake pad will lock motor shaft and holding motor no moving.
- 2. Compct size, 4 screwed holes on gearhead, also can be foostand mounted by L type bracket.
- 3. Gear material is 40Cr., all output shaft is integrated by hot extrusion processing, which can afford stronger impact resistance and strength than spline connection
- 4. All motors be power up to test withstanding voltage, insulation, noise, temperature rising and appearance.
- 5. 100% copper wire, cotinuously running is no problem.
- 6. Motor can be customized as per customer’s special requirement.
Product Application
- 1. Converyor system
- 2. Pharmaceutical machine
- 3. Automatic Control, Textile Equipment, Converyor System, Packing Machine
- 4. Motor, Textile, Printing, Food, Metallurgical.
- 5. Environmental Protection Engineering, Warehouse Logistics Industry.
