Three phase ac gear motor

Dongzhan Drive Industry (Shanghai)Co.,Ltd provides customers with high-quality, reliable, and efficient power, transmission, and control solutions.

Product Specification:

Description

Parameter details

Specifications
Motor part Gear box part
Power HP Voltage Frequency Motor speed Gearbox model speed ratio
0.37KW 0.5HP 220-400V 50/60HZ 1400/2800RPM NMRV030 1:7.5-100
0.55KW 0.75HP 220-400V 50/60HZ 1400/2800RPM NMRV040 1:7.5-100
0.75KW 1HP 220-400V 50/60HZ 1400/2800RPM NMRV050 1:7.5-100
1.1KW 1.5HP 220-400V 50/60HZ 1400/2800RPM NMRV050 1:7.5-100
1.5KW 2HP 220-400V 50/60HZ 1400/2800RPM NMRV063 1:7.5-100
1.8KW 2.5HP 220-400V 50/60HZ 1400/2800RPM NMRV063 1:7.5-100

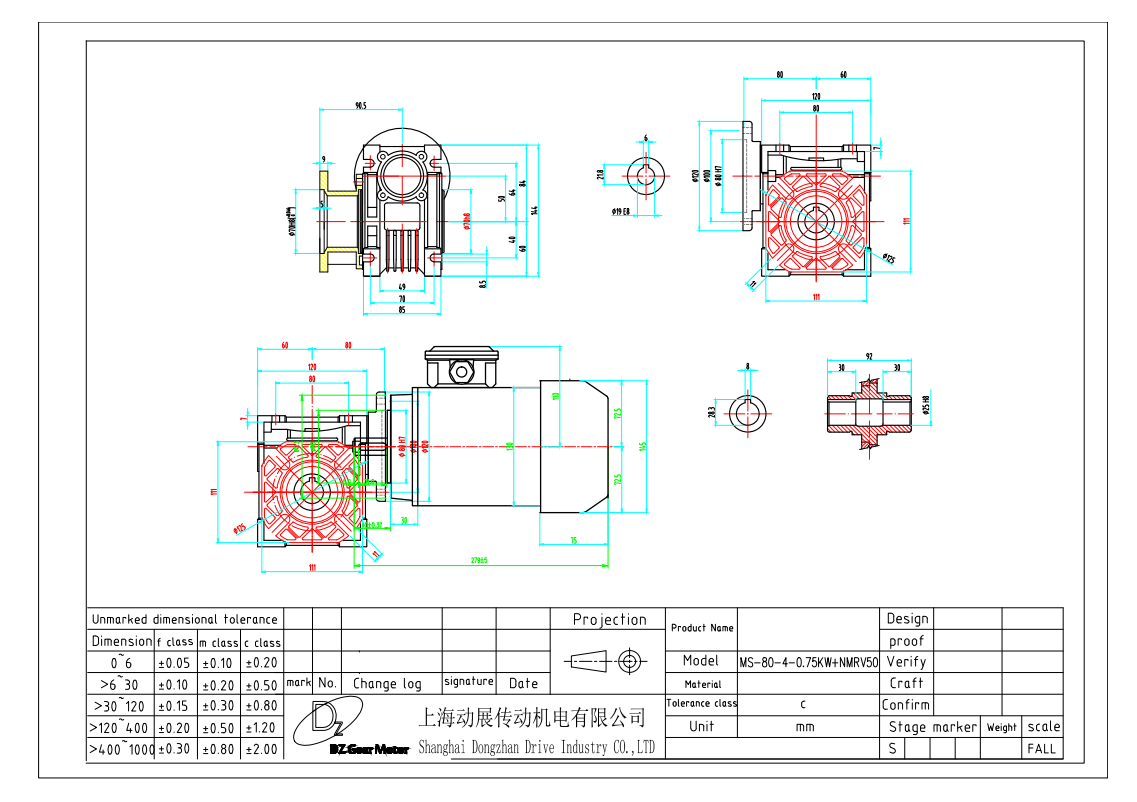

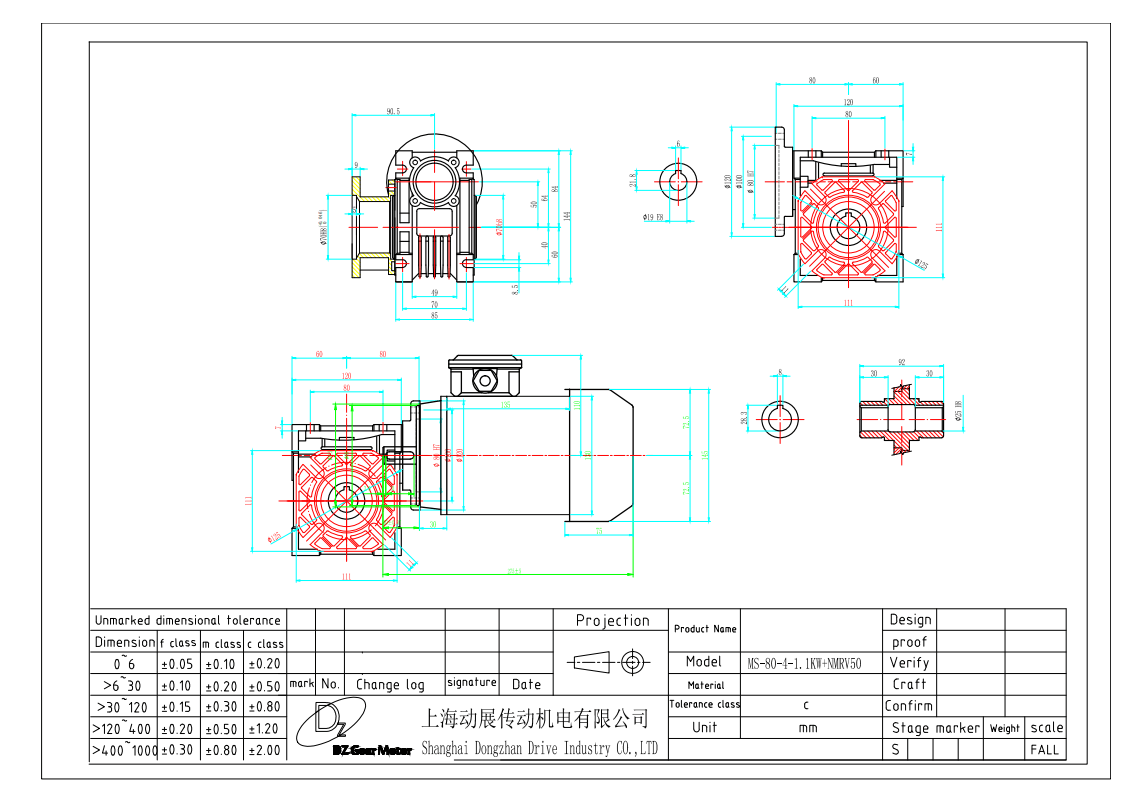

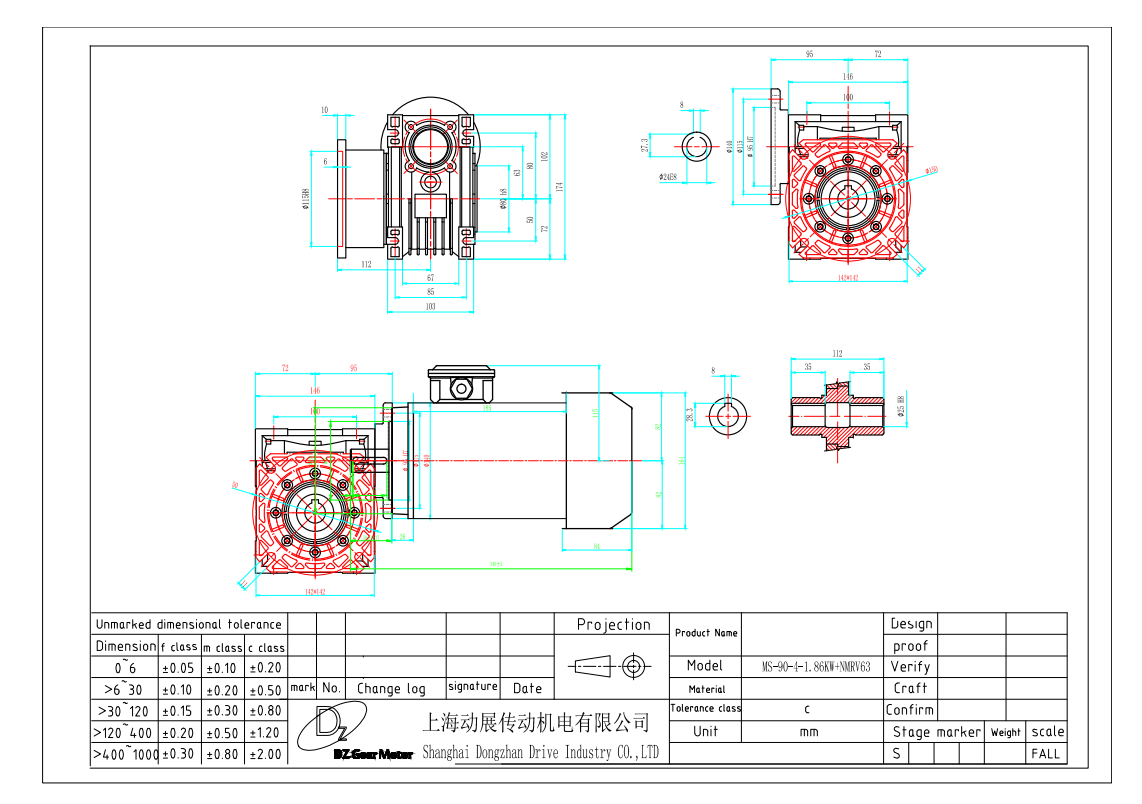

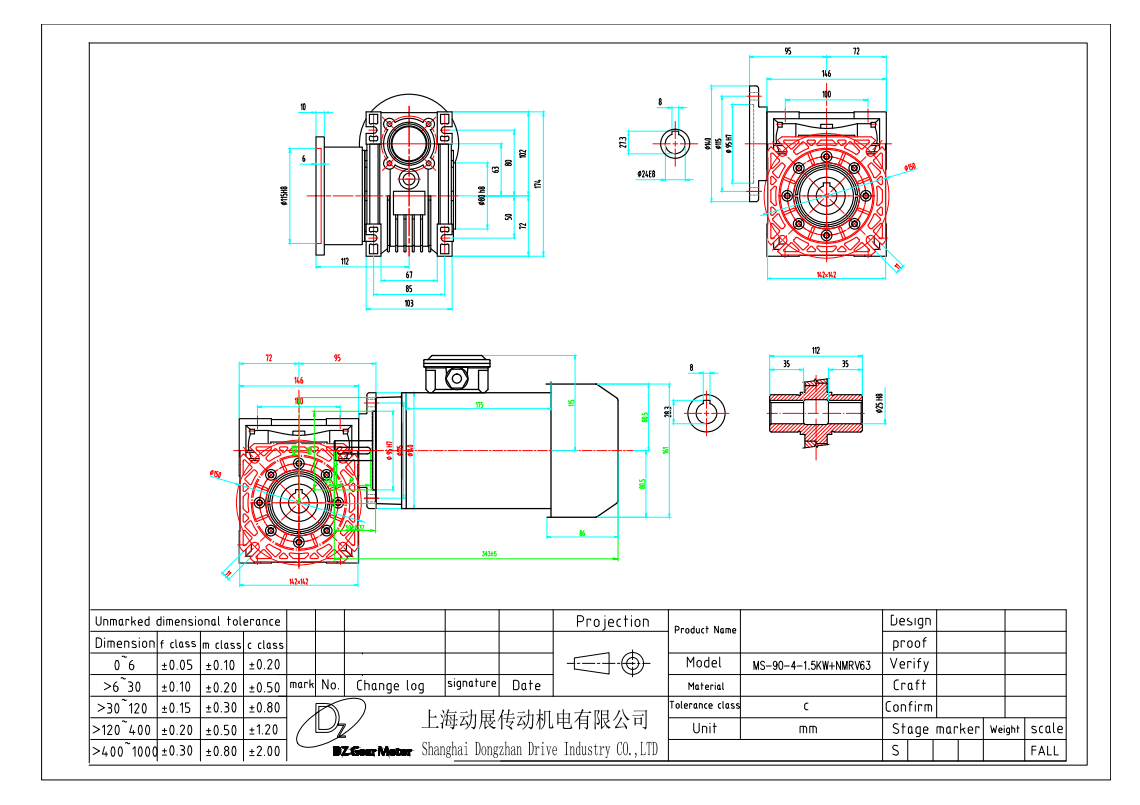

Product drawings





Three phase ac gear motor
