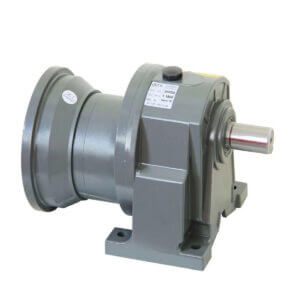

Gearhead with IEC flange-Vertical mounted

Dongzhan Drive Industry (Shanghai)Co.,Ltd provides customers with high-quality, reliable, and efficient power, transmission, and control solutions.

Product Specification:


Parameter details

Output Shaft Diameter:  18mm,22mm,28mm,32mm,40mm, 50mm, also can be customized if large orde.
Output Torque Range: 2N.m-1270N.m
Available Gear Ratio Standard 3/5/10/15/20/25/30/40/45/50/60/70/80/90/100/120/140/150/160/180/200
High ratio 250/300/350/400/450/500/600/700/800/900/1000/1100/1200/1300/1400/1500/1600/1700/1800
Mounting type Vertical-mounted or Flange mounted

Product Features

  • 1. Material: ADC-12 Aluminum Alloy if gearhead housing with output shaft diameter between 18mm-28mm; HT200 Cast Iron if gearhead housing with output shaft diameter between 32-50mm;
  • 2. Gear material is 40Cr and heat treatment by normalize&carbonize and hardness HRC42-47.
  • 3. Gear machining by precision hobbing machine, gear precision level can reach ISO Class 7~8.
  • 4. Pinion material is 20CrMnTi and heat treatment by normalize&carbonize and hardness HRC53-58.

Product Application

  • 1. Grain processing machinery, Food processing machinery, Livestock machinery, Aquaculture machinery
  • 2. Packaging machinery, Textile machinery, Logistics sorting machinery
  • 3. CNC machine tool manufacturing Industry.
  • 4. Environmental Protection Engineering, Plastic crusher machinery
  • 5. Parking garage equipment

Gearhead with IEC flange-Vertical mounted

Supplier Info

Dongzhan Drive Industry (Shanghai)Co.,Ltd. was established in 2011. From the beginning of its establishment, it has been upholding to provide customers with high-quality, reliable and efficient power, transmission and control solutions.
The company established its own production base in 2014 and currently has more than 80 employees, of whom about 45% are
non-frontline operators. These personnel are active in the R D department, sales service department, incoming inspection production line, process inspection production line, etc. which afford a strong guarantee of reliable quality and continuous improvement.
