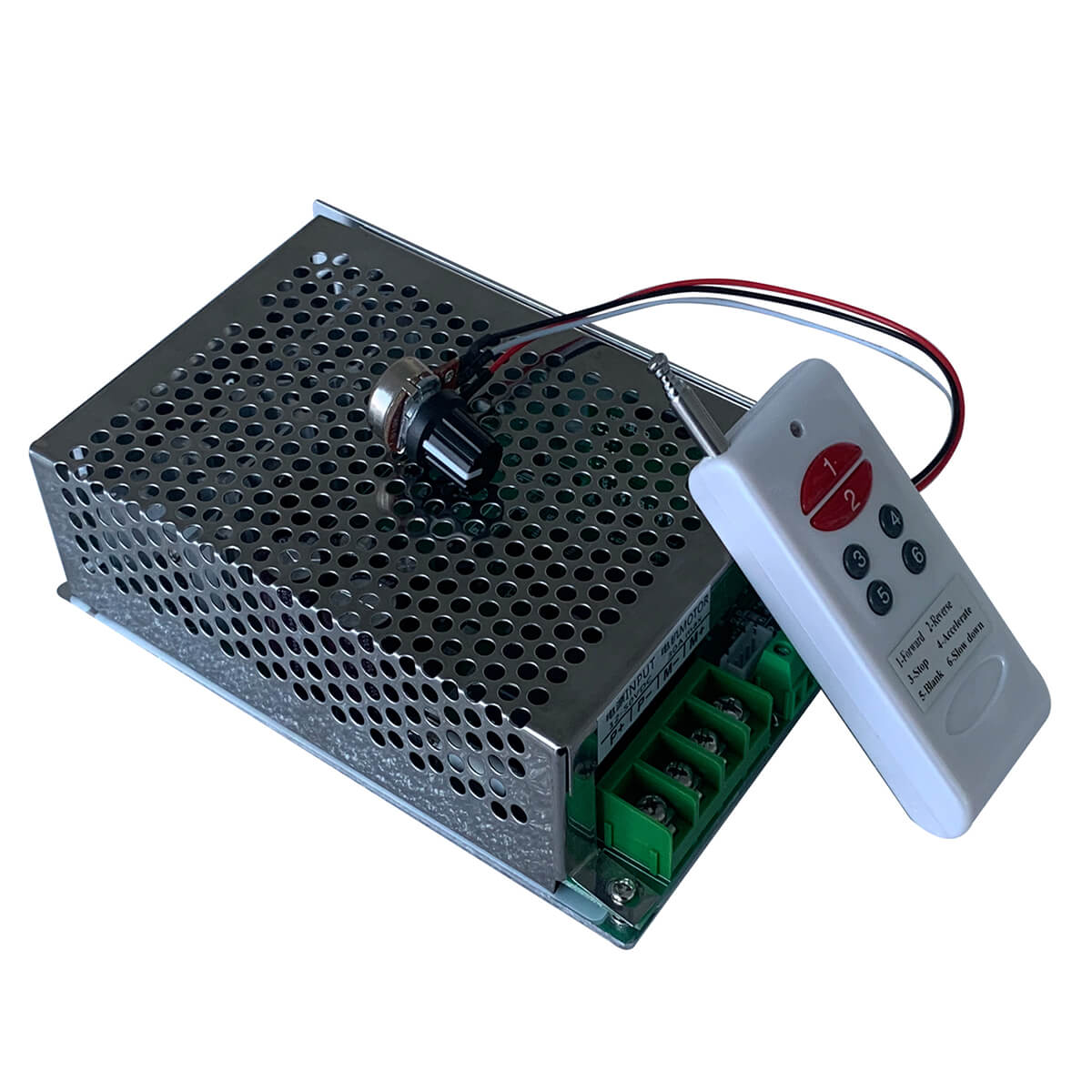

MR type DC controller

Dongzhan Drive Industry (Shanghai)Co.,Ltd provides customers with high-quality, reliable, and efficient power, transmission, and control solutions.

Product Specification:

Description

Parameter details

Available Power Range: ≤200W/12VDC;                              ≤400W/24VDC;
Input voltage: 12V-30VDC
Max Current 30A
Adjustale Range 0%-100%
Net Weight 400g
Measurement 160*92*43mm(controller)

Product Features

  • 1. Over-current protection, built-in 30A fuse
  • 2. Built-in NPN open sensor, can remote control
  • 3. Starting, stop, forward and reverse can be controlled by remote control
  • 4. Low starting and low stop time can be set
  • 5. Speed regulation by controlling the output voltage
  • 6. Support external potentiometer controls and remote controls

Product Application

  • 1. Industrial electrical control cabinet
  • 2. Toy
  • 3. Agriculture machinery
  • 4. Other place with max current no more than 30A
